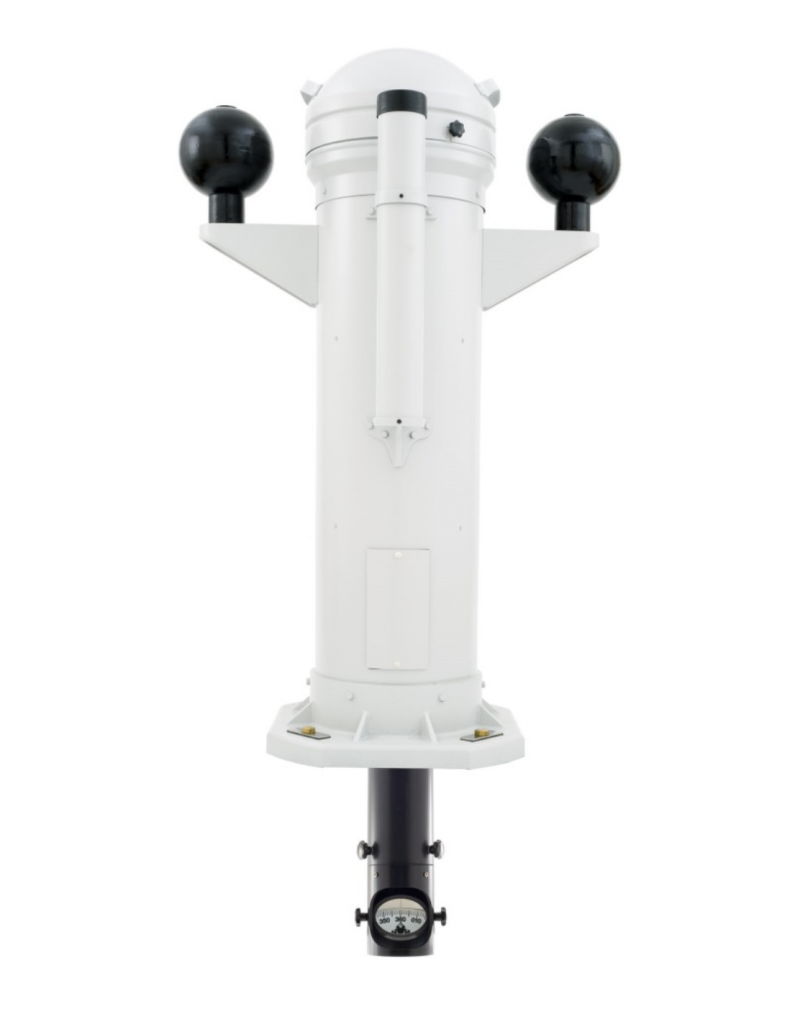

The REFLECTA/1 is a reflection compass binnacle for worldwide use. It complies with the European MED (Wheelmark) approval and all important international regulations. All essential components are included (see scope of delivery).

The standard height of the binnacle is 1.200mm. The height can also be adjusted by us. For this purpose, you will receive a dimension sheet from us, which must be filled in by the customer.
The reflection tube is an optical device underneath the binnacle for reading the course at the helmsman position inside the wheelhouse. The reading is made possible by means of lenses and mirrors.

Instead of the vertical reflection tube, a horizontal by-pass with a maximum length of 2 meters can be used (total length of the optical arrangements up to 3 meters). A by-pass is necessary if the helmsman position is not directly below the compass binnacle.

For a horizontal by-pass longer than 2 meters our REFLECTA/2 is suitable.

The REFLECTA/1 uses the TYPE/11 magnetic compass (reflection/bearing compass) with a card diameter of 180mm. The main compass is already included in delivery.

CUTUBE: If dimensions for the reflection tube are unknown, a tube length of 1.200mm is recommended, which can then be shortened accordingly by the customer on site.

FIXTUBE: If the dimensions are already known before delivery, the reflection tube can be cut to the final length by our workshop. For this purpose you will receive a questionnaire, which must be filled out by the customer.

The following accessories are necessary for worldwide use, but are not included in the delivery:

• Flinder’s bar
• TYPE/11 Spare compass
• Wooden storage box

The following accessories are optionally available:

• Horizontal by-pass (up to 2 meters)
• Various lighting dimmers
• Lashing rods
• Holders for sensors
• Electronic course indicator
