Everything you’d expect in a business radio … Plus Digital!

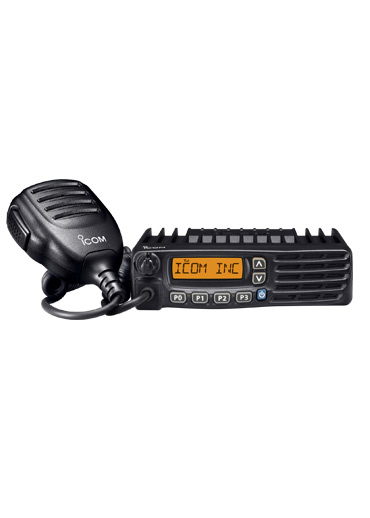

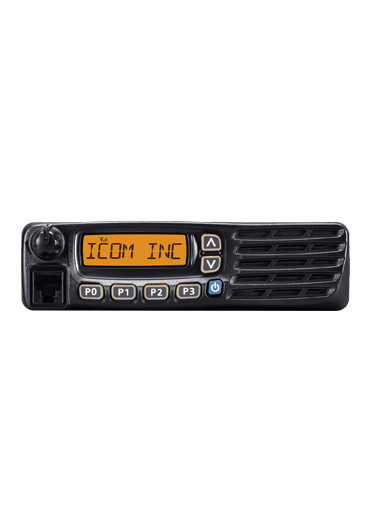

ICOM/IC-F6122D UHF Digital Mobile Radio
dPMR™ Mode 1/2 Conventional Mode
25W RF Output Power
128 Channels with 8 Zones
Built-in 2-Tone, 5-Tone, CTCSS, and DTCS (Analogue Mode)
Digital/Analogue Mixed Mode Operation
Superb Digital Audio Clarity
MIL-STD-810 F Rugged Construction
4W (typ.) Front Mounted Speaker
Technicial Specifications
FEATURES
28 channels with
8 zones An ample 128 channel capacity allow most companies plenty of room to grow. Up to 8 zones lets you group together channels in logical fashion.
Built military rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to MIL standard 810F specifications.
Compact hand microphone
Select from 4 levels of mic gain, for clearer transmission.
GPS receiver connection
An external GPS receiver, PC or other device can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). Operating channels can be selected from an external device. (up to 16 preprogrammed channels).
Note：No Digital Modulation “IN” using accessory cables.
8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller’s name, received message, etc.
Large programmable buttons
Programmable P0-P3 buttons provide easy access to frequently used functions. Buttons and LCD display are backlit for night time opeartion.
Powerful, front-facing speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle’s cabin. Digital modulation adds distinct clarity to received voices.
Transparent data modem function
When IC-F6122D series is connected to a PC or other external equipment, the transparent data modem function allows communication in a 6.25kHz channel. It can be used for remote telemetry system control or data applications.
Voting Scan
The voting scan detects the signal strength of the repeater sites and automatically selects the strongest station. The function is useful for roaming between multiple repeater sites. (It is recommended to test the voting performance during installation.)
Lone worker function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check<
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio. Watch the HM-211 performance video:
Other Features
CTCSS/DTCS encoder/decoder*
BIIS PTT ID transmission*
8 DTMF autodial memories
Microphone hanger action programmable
Optional DTMF microphone (HM-152T/HM-148T)
PC programmable
Power-on password function
Time out timer
Talk around function
Nuisance delete function*
Forced narrow function*
* analogue only
TX: Transmit, RX: Receive
IDAS and IDAS logo are trademarks of Icom Incorporated.
