Home > Products > IC-F3262DT Digital VHF Handheld Radio
Advanced IDAS™ Digital Handheld with Built-in GPS and Waterproof Protection
ICOM/IC-F3262DT Digital VHF Handheld Radio
Built-in GPS Receiver* Man Down* and Lone Worker Functions IP67 Waterproof and Dust-tight Protection 800mW Audio Output Power IDAS™ dPMR™ Features 512 Memory Channels with 128 Zones
Technicial Specifications
FEATURES

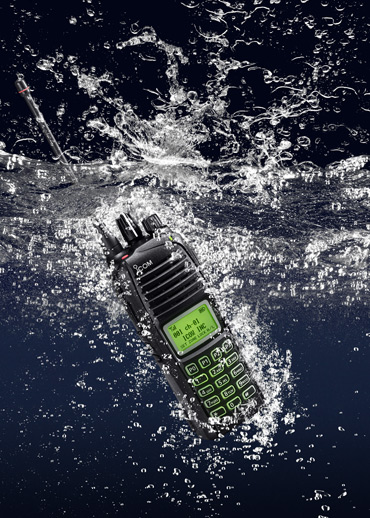

IP67 Waterproof & Dustproof Protection
The IC-F3262D series provides protection against dust and water that is equivalent to IP67. The radio can withstand 1m depth of water for 30 minutes.
Mandown and Lone Worker Functions for Emergency Call
The man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position. The lone worker function also can transmit an emergency signal when the radio is not operated for a preset period. These emergency signals can be sent with GPS position data* to alert your co-workers or dispatch of any potential trouble.
800mW Audio Output Power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Built-In GPS Receiver
Your current position data can be attached to a voice or data (SDM, status or emergency signal) transmission and can be sent to dispatch stations.
14-pin Accessory Connector
The new 14-pin accessory connector enhances audio output capabilities with the built-in BTL amplifier. The optional HM-184 speakermicrophone has a 1000mW (typ.) audio output for loud and clear communications.
Large Full Dot-Matrix LCD Screen
Using a large full dot-matrix LCD (32 × 18mm), the IC-F3262D series shows two lines of easy-to-read text messages. The bottom row shows assigned functions to the [P0] to [P3] buttons.
dPMR Features
The IC-F3262D series* meets dPMR standards (TS 102 658) and provides dPMR Tier 2 Mode 1/2/3 operation. The following dPMR features are programmable.
- Individual/group call
- All group call
- Emergency
- Call log
- Status message
- SDM (Short Data Message)
- GPS
- Stun, kill and revive
- Digital voice scrambler
- Transparent data mode
Other Features
- 512 memory channels with 128 zones
- 5W output power both in VHF and UHF
- Built-in 2-Tone, 5-Tone and BIIS 1200*
- CTCSS/DTCS encoder/decoder*
- MIL-STD 810 G rugged construction
- 8 DTMF autodial memories
- Tactical group function
- Busy channel lockout, repeater lockout
- Power on password
- Time-out timer
- Talk around function
- Low battery alert
- Escalating alarm
- Surveillance function
