FEATURES
Basic Functions

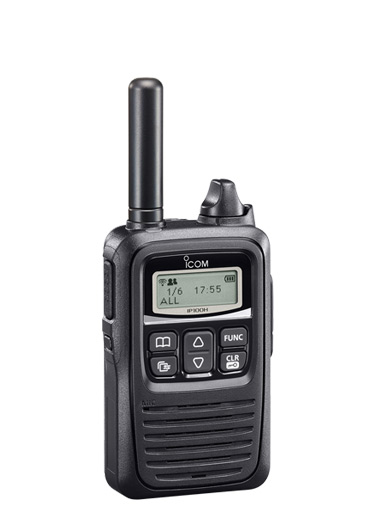

The IP100H IP communication terminal transmits voice and preprogrammed text messages to the IP1000C controller through the wireless LAN access points installed in the IP network (VPN). The controller redirects traffic to the specified terminals. The IP100FS remote communicator can create a virtual radio and simple dispatch station on a Windows® based PC. The IP100FS can obtain position information (based on using access points) and status information
Full-duplex Communication
With an optional earphone-microphone (HM-153LS, or HM-166LS) or headset (HS-102 with OPC-2359 or HS-85 with OPC-2144), the IP100H can talk and receive at the same time. All users in the system can communicate simultaneously.
Calling Features
The IP100H/IP100FS can make Individual calls, Group conference calls, All calls and Area calls. The unique Area call function allows you to call any user who is accessing the specified access point.
Mixing Function
The mixing function receives multiple user’s voices at the same time. One-to-many communication is possible and the efficiency of information sharing increases.
Status and Short Data Messaging
The IP100H/IP100FS can send status and short data messages* to other users. * The IP100H can send only preprogrammed messages.
Seamless Roaming
If two or more wireless access points are deployed over an IP network, the IP100H can access the nearest access point and can roam between access points.
Scalable System
Deploying wireless access points over an IP network can expand the communication range. Dispersed sites can also be connected over an IP network (VPN). Range is only restricted by your IP network coverage.
High Security
The wireless LAN security protocols (WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)) encrypt your private conversations.
License-Free
Licensing and applications are not required for installation. IEEE 802.11 a/b/g/n standards are used.
Easy Maintenance
The IP1000C programs almost all terminal configurations over the air. Individual PC programming via cable connection is not required.
When used with an IP phone system, the IP100H can be used as a phone handset for making internal or external calls.*2
Supplied accessories
IP100H
BP-271 Li-Ion battery pack
MB-127 belt clip
Hand strap
Antenna
Antenna cap
IP1000C
BC-207S AC adapter
Cushion sheets
Ferrite core
